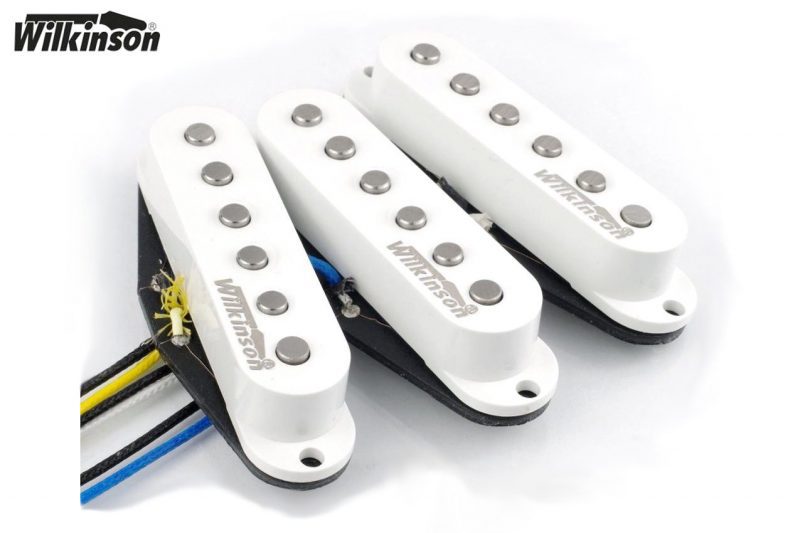

High output Wilkinson WHS with non-staggered flat polepieces  single coil pickups made in Korea

Higher output version of the WVS with non-staggered flat polepieces.  They are specially suitable if you use a lot of effects. The WHS pickups are rich in harmonics and natural sustain. The middle pickup is reverse wound and reverse polarity, so that it cancels the hum as a ‘humbucker’ when used as a set the neck / middle, middle / bridge combination in position 2 & 4 on a traditional 5 way switch.
The guitar strings will vibrate less the nearer they get to the bridge. Less movement mean less voltage created by the pickup and a noticeable drop in volume. To solve it, bridge pickup is slightly overwound to increase the output and balance the set.

-Each pickup has two wire conection with  vintage cloth wire

-Magnets: Alnico V

-Color: White

-Distance between mounting holes: 77mm

-Pole spacing: Neck, middle and bridge 52mm

-Resistance: Neck: 7,0kohms, Middle: 7,0kohms, Bridge: 7,9kohms

-Mounting Screws & Height Adjustment Springs included
