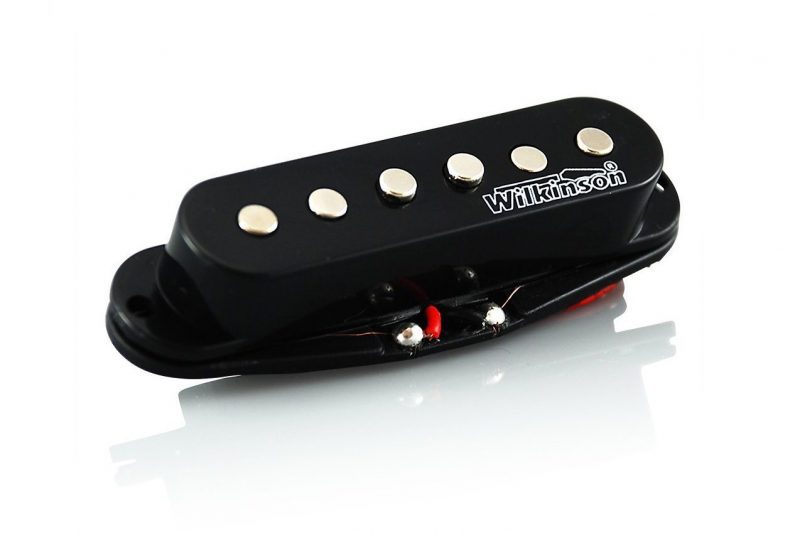

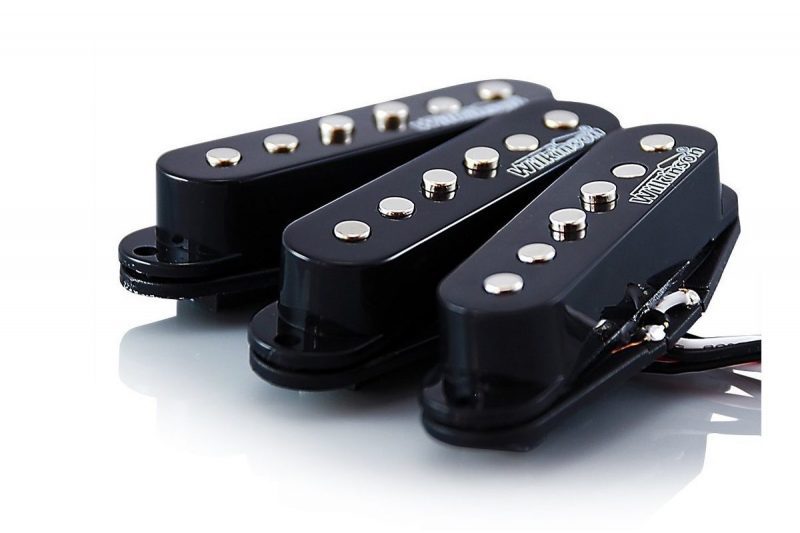

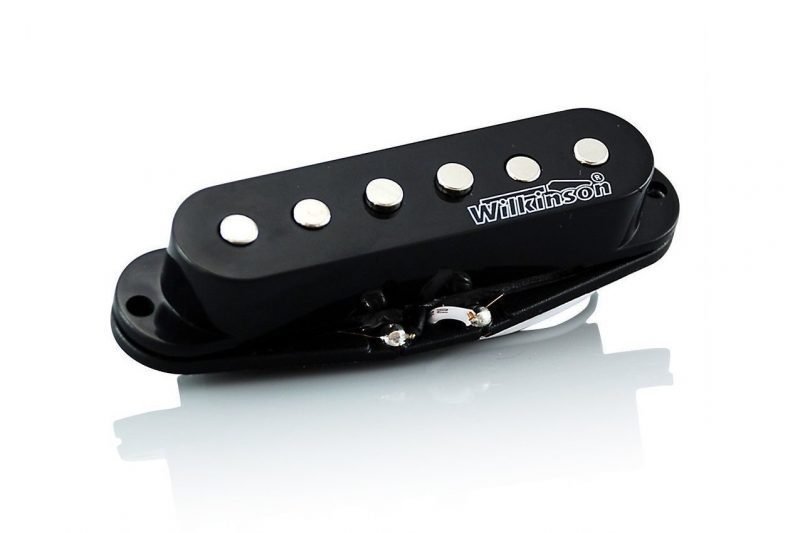

Classic Wilkinson Vintage 60’s  MWVS with staggered polepieces  single coil pickups

These 60’s replica pickups offer amazing vintage warmth and tone. The set benefits from having a slightly hotter output than most standard Mex and SQ. pickups yet still provide vintage ‘ST’ bell-like tones with sweet quack in positions 2 and 4, a full, bright bridge setting and lovely nasal neck tones. The middle pickup is reverse wound and reverse polarity, so that it cancels the hum as a ‘humbucker’ when used as a set the neck / middle, middle / bridge combination in position 2 & 4 on a traditional 5 way switch.
The guitar strings will vibrate less the nearer they get to the bridge. Less movement mean less voltage created by the pickup and a noticeable drop in volume. To solve it, bridge pickup is slightly overwound to increase the output and balance the set.

-Each pickup has two wire conection. White and black for neck and bridge pickup, and red and black for middle pickup.

-Magnets: Ceramic

-Color: Black

-Distance between mounting holes: 77mm

-Pole spacing: Neck and middle 50mm. Bridge 52mm

-Resistance: Neck: 5,4kohms, Middle: 5,5kohms, Bridge: 6,1kohms

-Mounting Screws & Height Adjustment Springs included
