SHORT SHAFT PUSH PULL POTENTIOMETER
5,25€

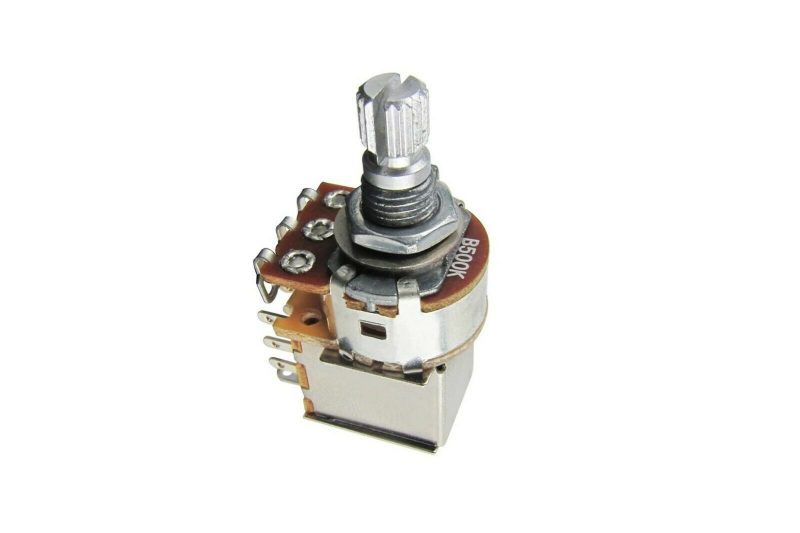

Split splined shaft push pull potentiometer
A500, B500, A250 and B250 split splined shaft potentiometer
-Resistance: 500 and 250 Kohms
-Curve: Available lineal (B) and logarithmic (A)

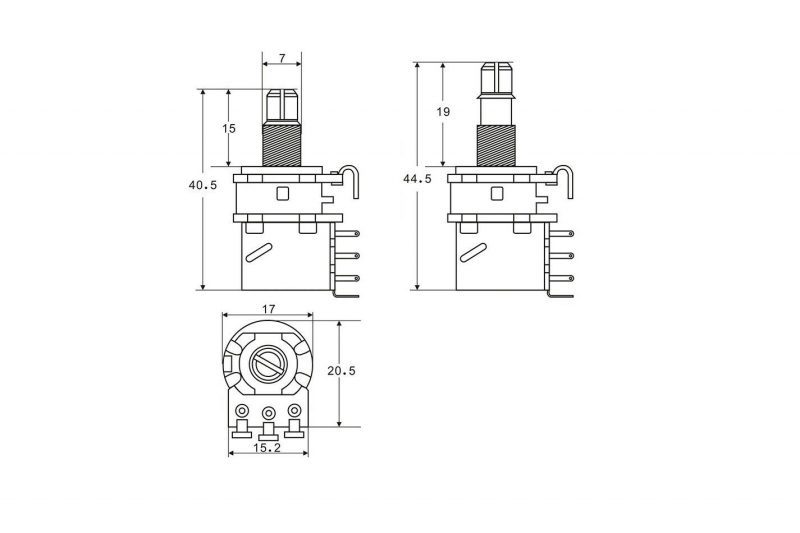

-Shaft Length: 15mm. Short shaft for mountings on pickguards and control plates
-Shaft diameter: 6,9mm
-The end of the shaft is 6mm diameter, splined and split, so you can place any button inside 6mm splined

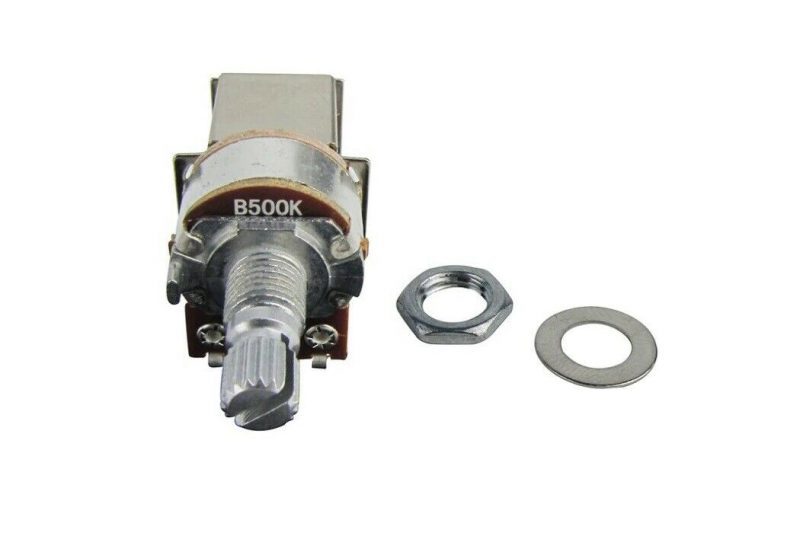

-Includes washer and nuts for mounting
