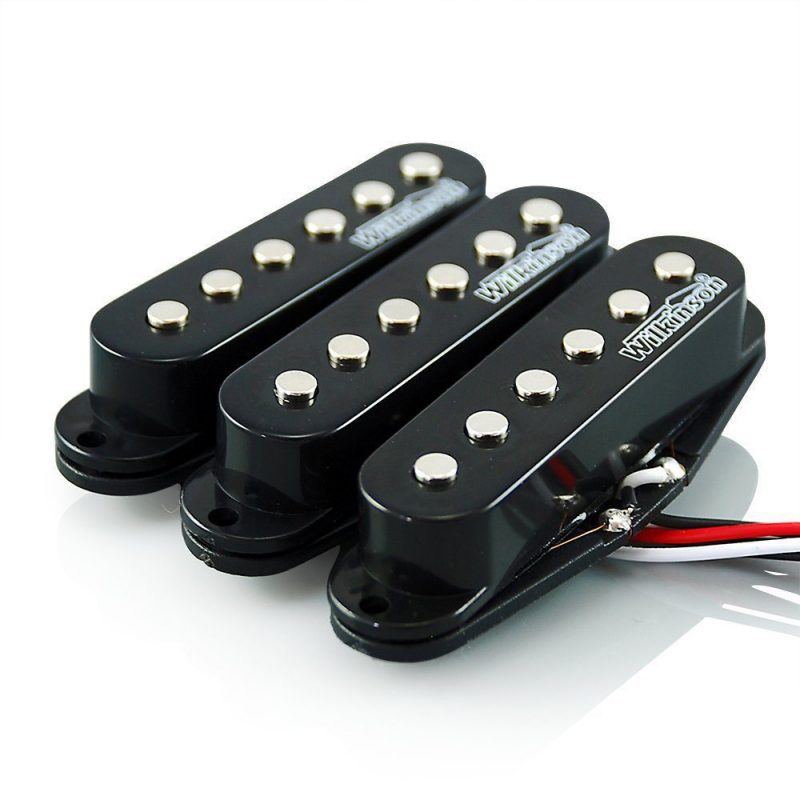

MWHS high output single coil pickups
Featuring non-staggered, flat pole-pieces, they are ideal if you use effects pedals, providing rich harmonics and plenty of natural sustain. The middle pickup is reverse wound and reverse polarity, so that it cancels the hum as a ‘humbucker’ when used as a set the neck / middle, middle / bridge combination in position 2 & 4 on a traditional 5 way switch.
The guitar strings will vibrate less the nearer they get to the bridge. Less movement mean less voltage created by the pickup and a noticeable drop in volume. To solve it, bridge pickup is slightly overwound to increase the output and balance the set.
-Each pickup has two wire conection. White and black for neck and bridge pickup, and red and black for middle pickup.
-Magnets: Ceramic
-Color: Black
-Distance between mounting holes: 77mm
-Pole spacing: Neck and middle 50mm. Bridge 52mm
-Resistance: Neck: 5,4kohms, Middle: 5,5kohms, Bridge: 6,1kohms
-Mounting Screws & Height Adjustment Springs included
